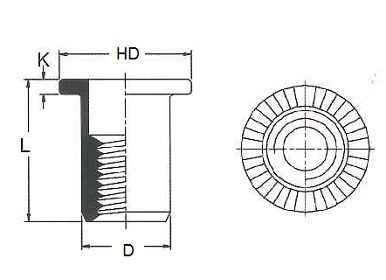

F-Series Cylindrical Head { Flat } / Steel & Aluminium (mm)
琁閔-F 系列 大帽規格表 / 材質:鐵 & 鋁
單位:公制 (mm)
Item No
Size (mm)
Hole Size
HD
D
K
L
Grip Range
產品編號
尺寸規格
鑽孔徑
鉚接板厚
FLS3-350-2.5’
M3-P0.5
5.0
8.0
4.9
0.8
9.5
1.0-2.5
FLS3-470-2.5’
M4-P0.7
6.1
9.0
6.0
11.0
FLS3-580-3.0’
M5-P0.8
7.0
10.0
6.9
1.2
13.5
0.5-3.0
FLS3-610-2.5’
M6-P1.0
12.0
8.9
1.5
14.5
FLS3-610-4.0’
16.5
2.5-4.0
FLS3-8125-3.5’
M8-P1.25
11.1
15.0
18.0
0.8-3.5
FLS3-1015-3.5’
M10-P1.5
16.0
11.9
1.7
19.5
1.0-3.5
FLS3-1015-6.0’
22.0
3.5-6.0
*Welding 焊接產品
